#include <entity_data_set.hpp>

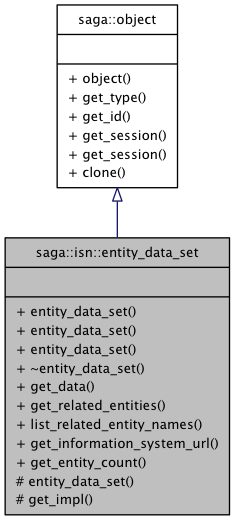

Inheritance diagram for saga::isn::entity_data_set:

Public Member Functions
	entity_data_set (const std::string &model, const std::string &entityType, const std::string &filter, session const &sess, const std::string &url) SAGA_THROW_SPEC() throw (saga::bad_parameter, saga::does_not_exist, saga::no_success, saga::not_implemented)
	entity_data_set (const std::string &model, const std::string &entityType, const std::string &filter) SAGA_THROW_SPEC() throw (saga::bad_parameter, saga::does_not_exist, saga::no_success, saga::not_implemented)
	entity_data_set (saga::object const &o)
	~entity_data_set ()
std::vector < saga::isn::entity_data >	get_data () const SAGA_THROW_SPEC() throw ()
saga::isn::entity_data_set	get_related_entities (const std::string &relatedName, const std::string &filter=std::string()) const SAGA_THROW_SPEC() throw (saga::bad_parameterm saga::no_success)
std::vector< std::string >	list_related_entity_names () const
std::string	get_information_system_url () const
std::size_t	get_entity_count () const
Protected Member Functions
	entity_data_set (saga::impl::entity_data_set *impl)
saga::impl::entity_data_set *	get_impl (void) const

Detailed Description

Provides the means to navigate around the information model for a selected entity and gives access to the entity_data objects.

Navigation consists of moving from entity to entity within an information model, as expressed in the GLUE entity relationship model. Navigation can also be from entity to related entity. A list of possible navigation steps from an entity_data_set object is returned by the list_related_entity_names method. Navigation to a set of related entities is achieved with the get_related_entities method, which returns a new entity_data_set object. N.B. navigation is from a set of entity_data objects to a new set, a many to many relationship. In order to restrict the number of entity_data objects returned in the entity_data_set object, a filter may be used with the get_related_entities method. The filter MUST only include attributes from the related entity and it will be applied to the related entities.

Definition at line 51 of file entity_data_set.hpp.

Constructor & Destructor Documentation

saga::isn::entity_data_set::entity_data_set ( saga::impl::entity_data_set * impl ) [explicit, protected]

Definition at line 46 of file entity_data_set.cpp.

saga::isn::entity_data_set::entity_data_set	(	const std::string &	model,
		const std::string &	entityType,
		const std::string &	filter,
		session const &	sess,
		const std::string &	url
	)			throw (saga::bad_parameter, saga::does_not_exist, saga::no_success, saga::not_implemented)

Creates an EntityDataSet that contains the set of entities that pass the specified filter. The filter MUST only include attributes from the named entity. Details about the filter can be found in the package description. The url specified is to assist the implementation to locate the underlying information system such that it can be queried.

Parameters:

	model	a string containing the name of the information model
	entityType	a string containing the name of the entity to navigate
	filter	a string containing the filter for filtering entities, may be `null`
	sess	the session handle
	url	the URL to guide the implementation

Returns:: the entity_data_set instance

Exceptions:

	bad_parameter	if the related name is not valid, or the filter is not valid
	does_not_exist	if the url is syntactically valid, but no service can be contacted at that URL
	no_success	if no result can be returned because of information system or other internal problems
	not_implemented	if not implemented by that SAGA implementation at all

Definition at line 21 of file entity_data_set.cpp.

saga::isn::entity_data_set::entity_data_set	(	const std::string &	model,
		const std::string &	entityType,
		const std::string &	filter
	)			throw (saga::bad_parameter, saga::does_not_exist, saga::no_success, saga::not_implemented)

Creates an entity_data_set that contains the set of entities that pass the specified filter. The filter MUST only include attributes from the named entity. Details about the filter can be found in the package description.

Parameters:

	model	a string containing the name of the information model
	entityType	a string containing the type of the entity to navigate to
	filter	a string containing the filter for filtering entities

Returns:: the entity_data_set instance

Exceptions:

	BadParameter	if the related name is not valid, or the filter is not valid
	DoesNotExist	if the url is syntactically valid, but no service can be contacted at that URL
	NoSuccess	if no result can be returned because of information system or other internal problems
	NotImplemented	if not implemented by that SAGA implementation at all

Definition at line 34 of file entity_data_set.cpp.

saga::isn::entity_data_set::entity_data_set ( saga::object const & o ) [explicit]

Definition at line 51 of file entity_data_set.cpp.

References saga::BadParameter, saga::object::get_type(), and saga::object::ServiceDescription.

saga::isn::entity_data_set::~entity_data_set ( ) [inline]

Definition at line 137 of file entity_data_set.hpp.

Member Function Documentation

saga::impl::entity_data_set * saga::isn::entity_data_set::get_impl ( void ) const [protected]

Definition at line 66 of file entity_data_set.cpp.

Referenced by get_data(), get_entity_count(), get_information_system_url(), get_related_entities(), and list_related_entity_names().

std::vector< saga::isn::entity_data > saga::isn::entity_data_set::get_data ( ) const throw ()

Returns a vector of entity_data objects.

Returns:: a vector of entity_data objects associated with this entity

Definition at line 61 of file entity_data_set.cpp.

References get_impl().

saga::isn::entity_data_set saga::isn::entity_data_set::get_related_entities	(	const std::string &	relatedName,
		const std::string &	filter = `std::string()`
	)			const throw (saga::bad_parameterm saga::no_success)

Returns an entity_data_set object for the given entity name and matching the filter string. The filter MUST only include attributes from the related entity. More details about the filter can be found in the package description. N.B. There is a special case where there is a self relationship between entities, i.e. "AdminDomain" in GLUE 2, in such cases the keywords up and down may be used in place of the name of the related entity to navigate to. For example where AdminDomain="rl.ac.uk" up may return AdminDomain="ac.uk".

Parameters:

	relatedName	a string containing the name of the related entity to navigate to
	filter	a string containing the filter for filtering related entities, may be empty

Returns:: a related entity_data_set matching the specified filter string

Exceptions:

	BadParameter	if the related name is not valid, or the filter is not valid
	NoSuccess	if no result can be returned because of information system or other internal problems

See also:: list_related_entity_names()

Definition at line 74 of file entity_data_set.cpp.

References get_impl().

std::vector< std::string > saga::isn::entity_data_set::list_related_entity_names ( ) const

Returns a set of names of those entities that may be navigated to, from this entity_data_set. N.B There is a special case where there is a self relationship between entities, i.e. "AdminDomain" in GLUE 2, in such cases the keywords up and down will also be returned as appropriate.

Returns:: a list of names of related entities

Definition at line 82 of file entity_data_set.cpp.

References get_impl().

std::string saga::isn::entity_data_set::get_information_system_url ( ) const

Definition at line 87 of file entity_data_set.cpp.

References get_impl().

std::size_t saga::isn::entity_data_set::get_entity_count ( ) const

Definition at line 92 of file entity_data_set.cpp.

References get_impl().

The documentation for this class was generated from the following files:
